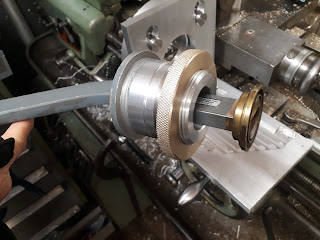

Mounting plug and securing nut for the feed.

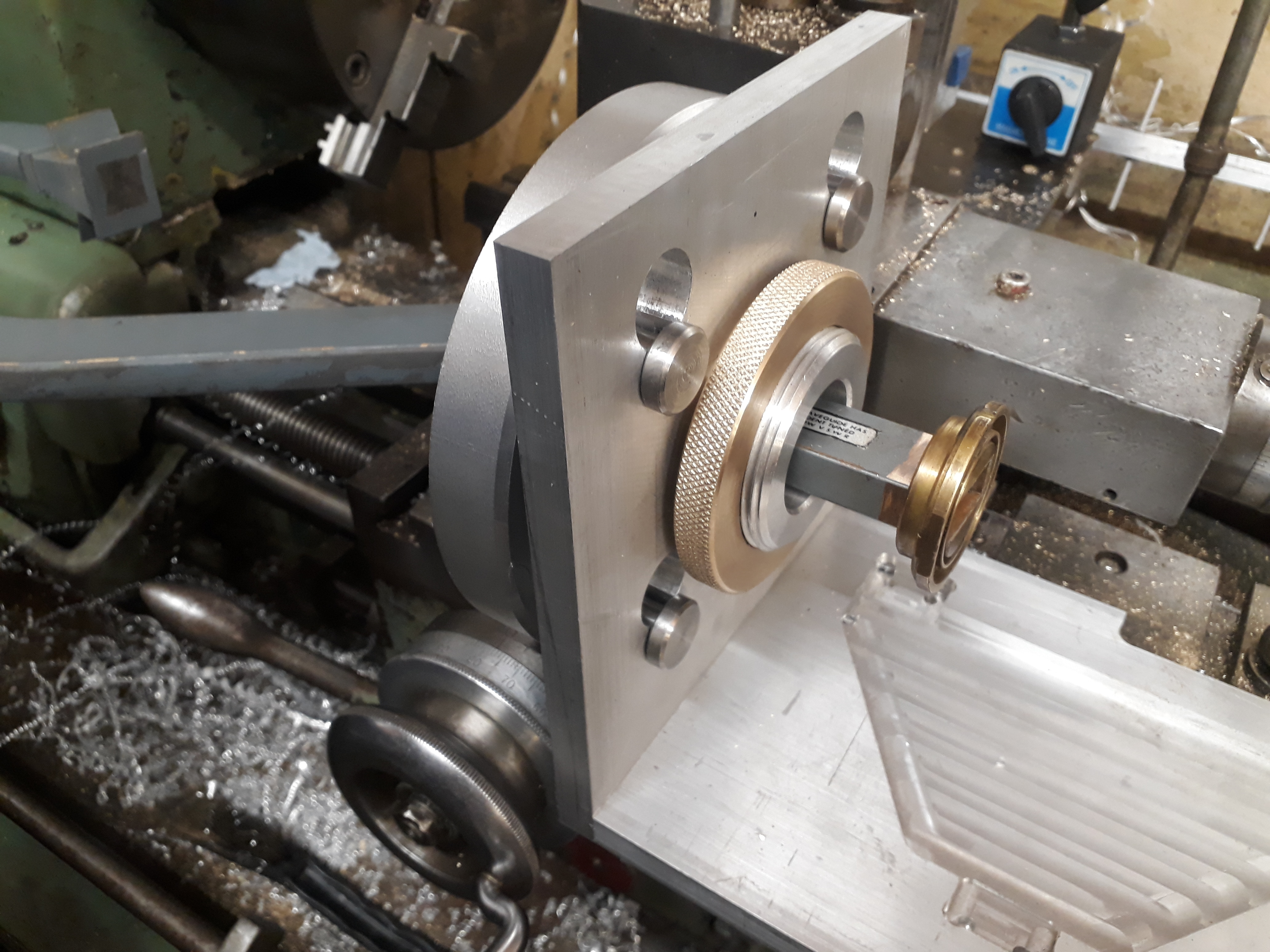

 Mounting plug for feedhorn. The idea is to have multiple of these, so the dish can be used with different feeds for the different bands.  The thread was a joy to cut ... 60mm by 2.5mm pitch.

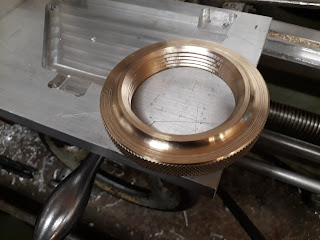

A lump of 80mm dia brass bar was bought and a nut made on the lathe, nicely knurled and finally given a bit more "finger grip" in the mill. It's all coming together now.
